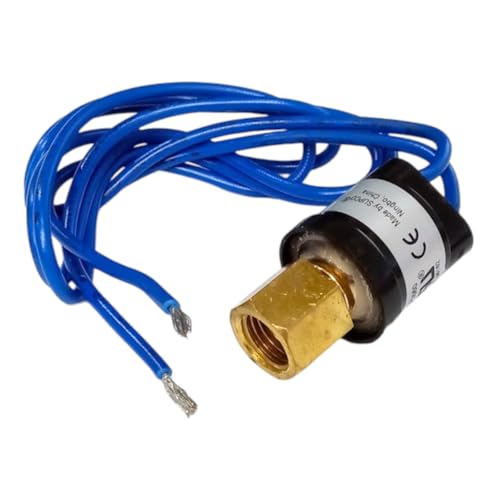

Supco SLP3560 Low Pressure Switch Open: 35 PSI Close: 60 PSI HVAC Refrigeration

Brand: Supco

Features:

• Supco Part number SLP3560
• Open: 35 PSI Close: 60 PSI
• Low pressure switch opens on pressure fall

PartNumber: SLP3560

Details: Supco Part number SLP3560 Open: 35 PSI Close: 60 PSI Low pressure switch opens on pressure fall High precision controls at economical prices. Encapsulated, non-adjustable, single pole - single throw, direct mount switches for use with HFC, HCFC, and CFC refrigerants Features: ¼" SAE 45° female flare fitting with valve core depressor Low pressure switch opens on pressure fall Life at rated load: 100,000 cycles Automatic Reset Rated Voltage 24/120/240 VAC @ 50/60 Hz Snap acting stainless steel hermetically sealed sensor Wire is 18 AWG, 18" long Small size and light weight for direct mounting Excellent set point repeatability/stability Specifications: -31°F to 149°F (-35°C to 65°C) UL Recognized, CE Max Pressure 700PSI

UPC: 687152195893

EAN: 0687152195893

Model: SLP3560

Item Condition: New
